Digital Printing System

Brand

InkTec has developed a UV-curable inkjet printer, JETRIX, and high-quality UV ink with cutting-edge technology in the inkjet area. Combined with the researchers’ years of accumulated know-how, JETRIX is a perfect solution for photographic printing for advertisements and various industrial printing areas.

JETRIX, with its advanced technology, guarantees an outstanding printing quality through true grayscale printing. A powerful auto-vacuum system provides for stable printing, and a self-diagnosis system enables easy repair and maintenance. Combined with the development of specialty inks, such as white ink, varnish ink, and primers (for glass and metal), it will mark a new era in UV curable inkjet printer industry.

  www.jetrix.co.kr

Cores of Printing System

  • The only industrial printer manufacturer that provides a total solution (UV printer + UV ink)
  • Top-quality UV ink production technology

Areas of Use

1
Coated paper for packaging box
2

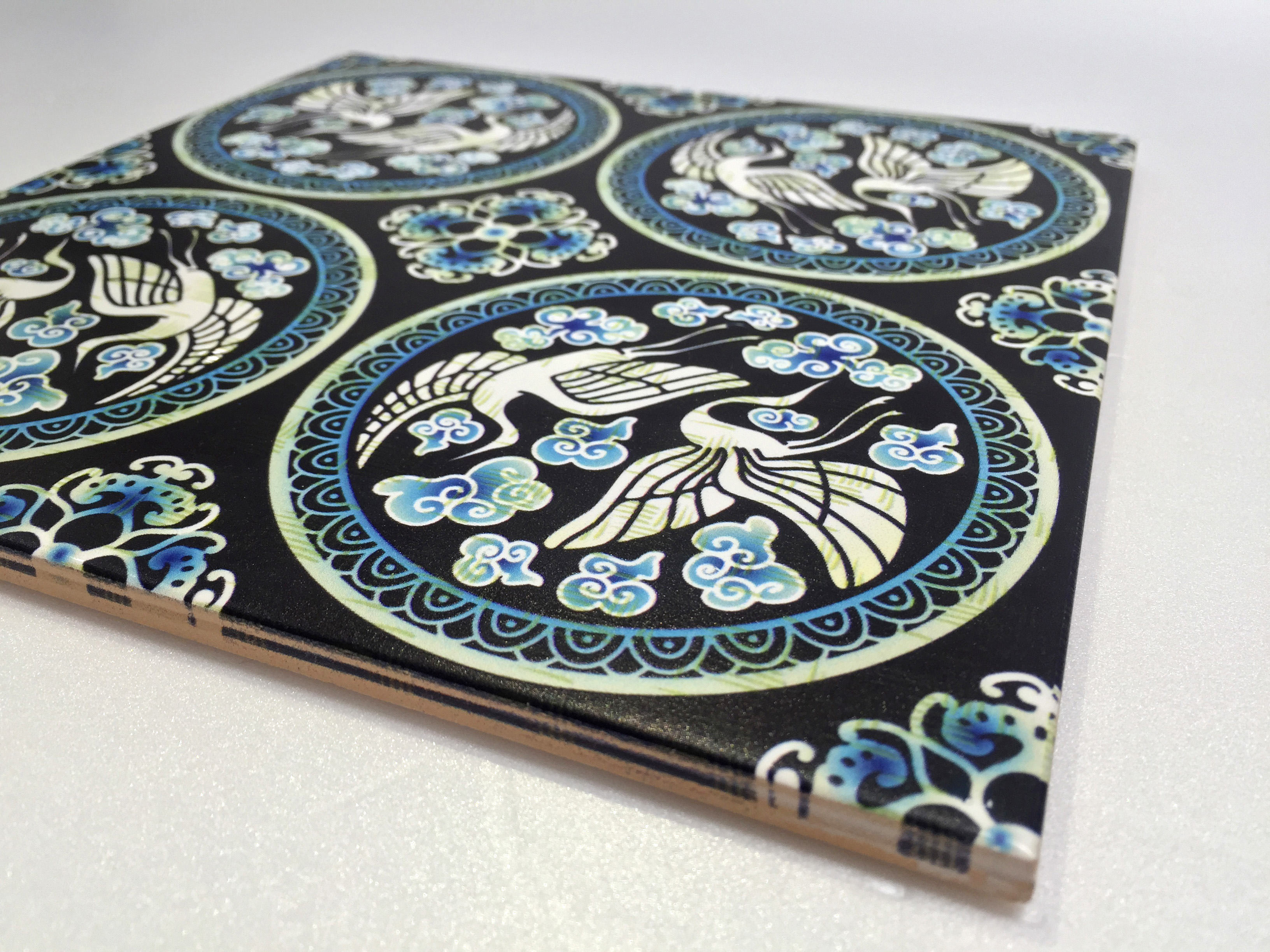

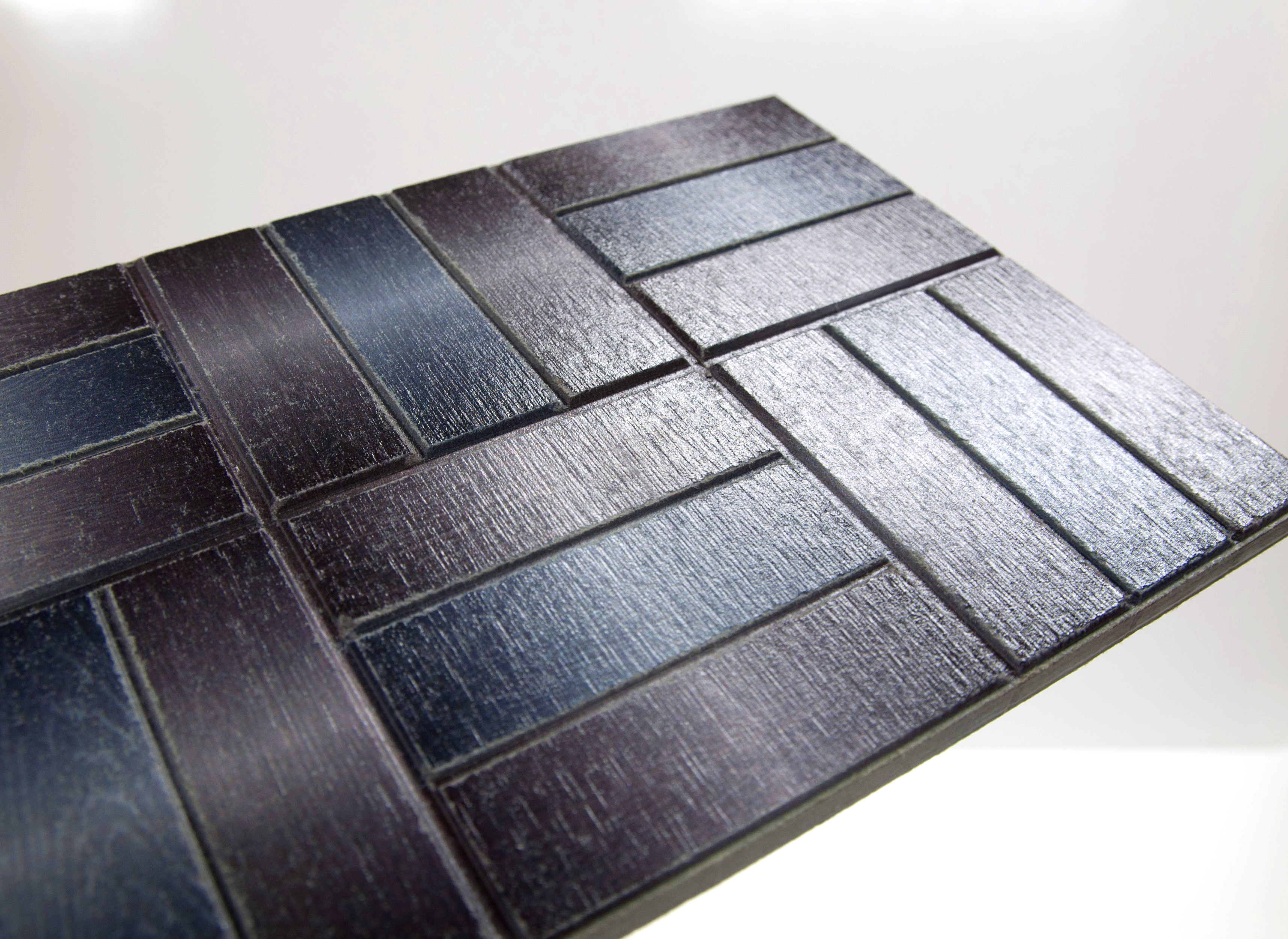

Tile
3

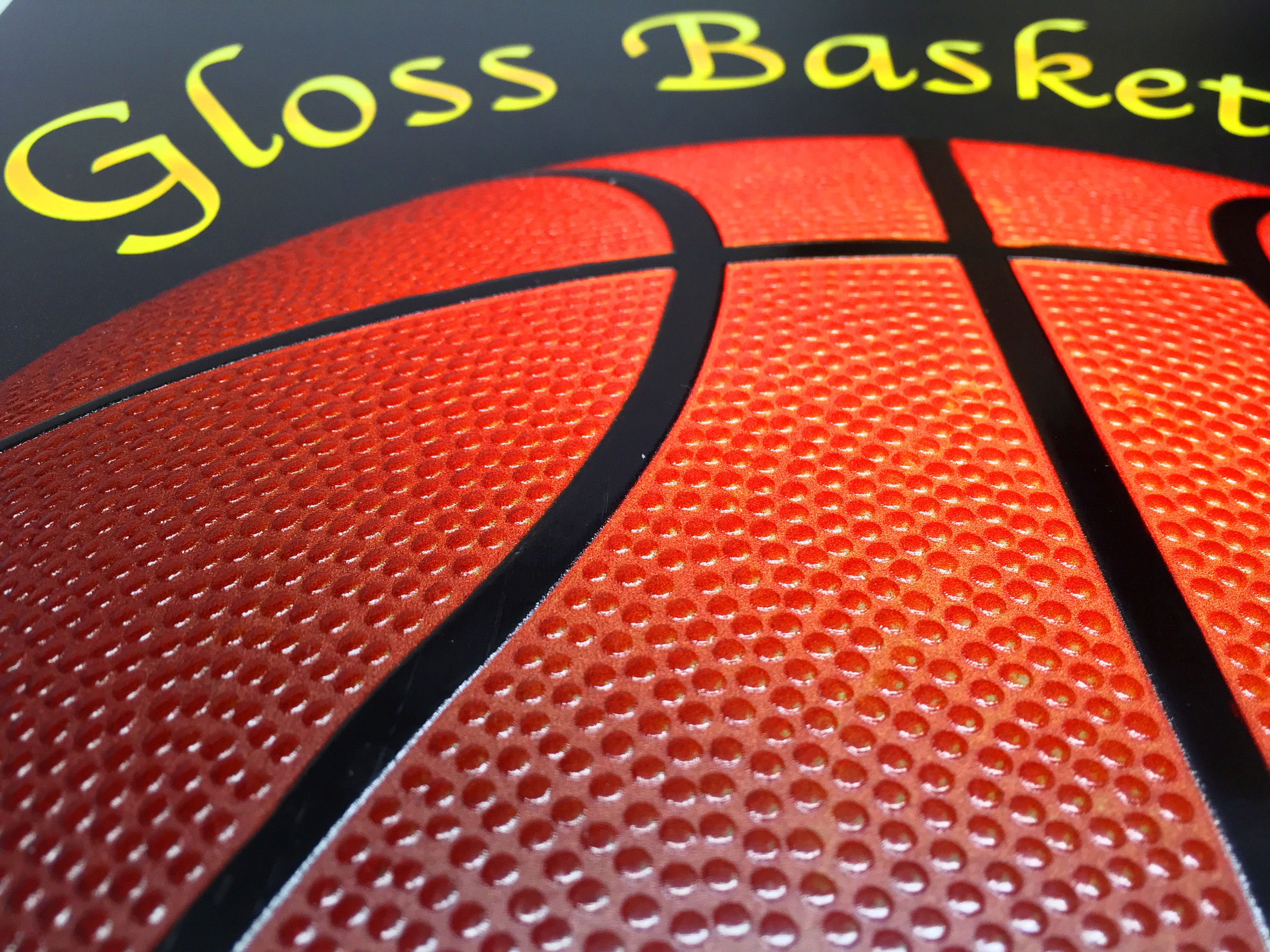

Gloss Varnish on Dibond
4

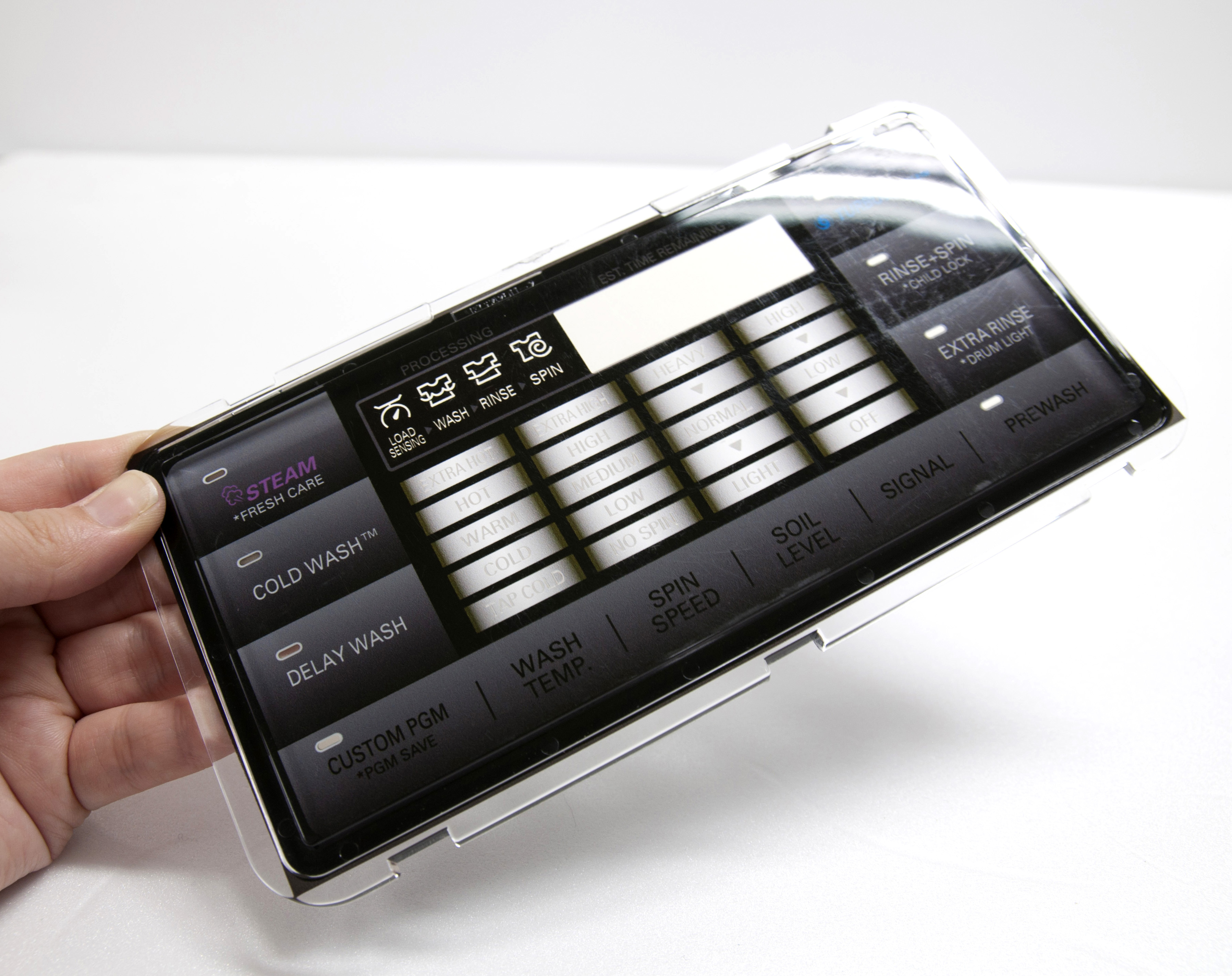

Transparent Plastic for control board
5
PC
6

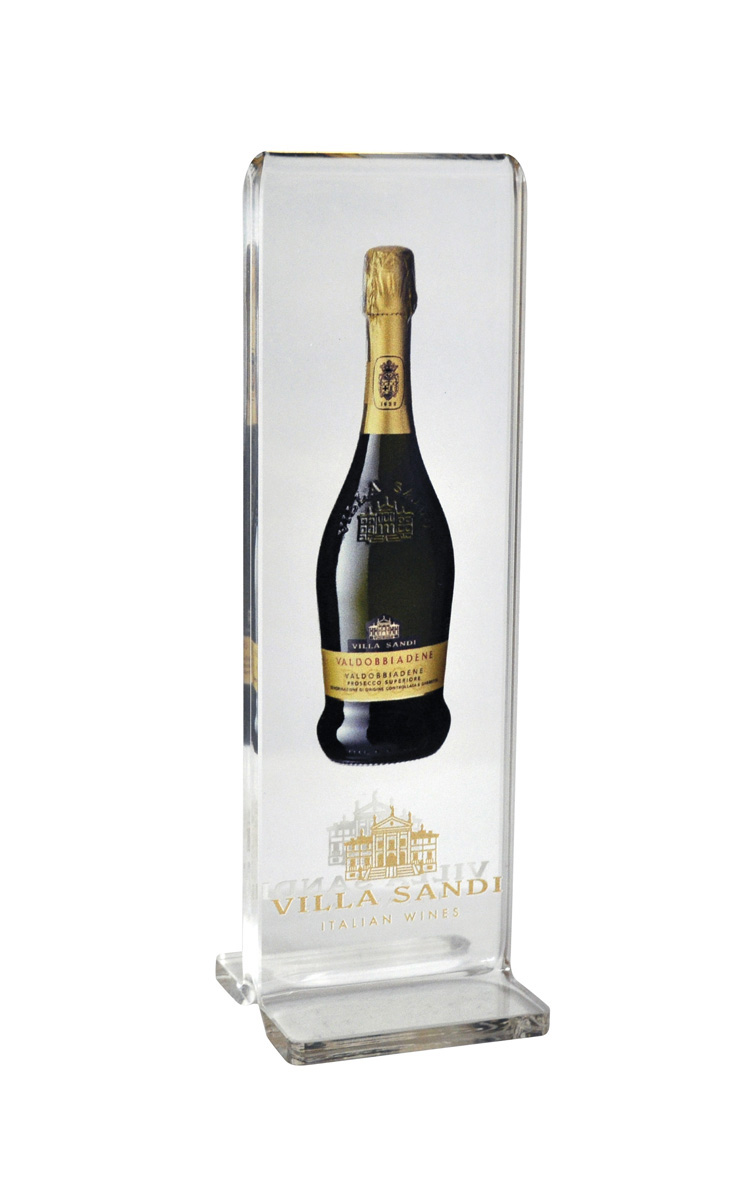

Acrylic
7

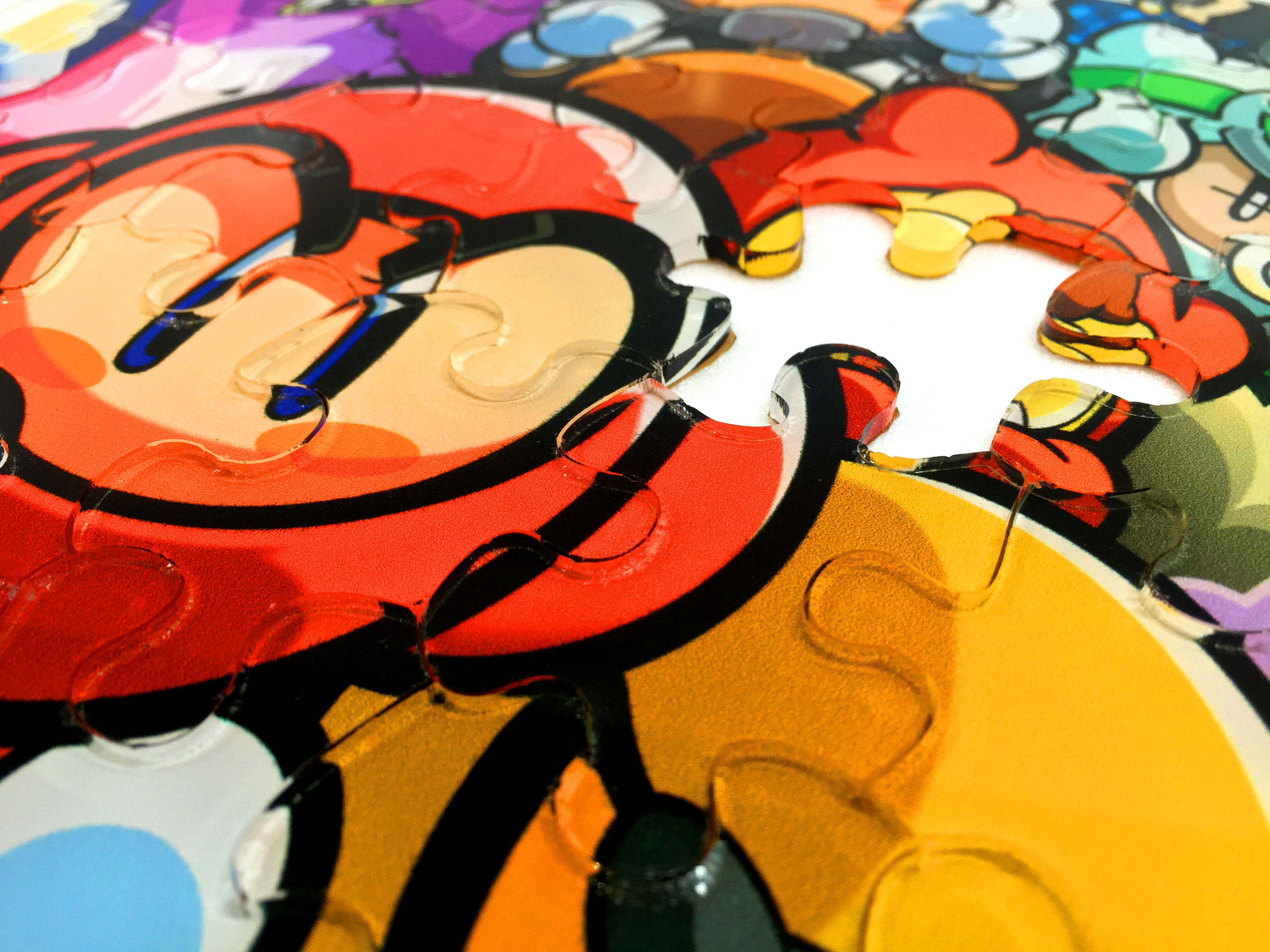

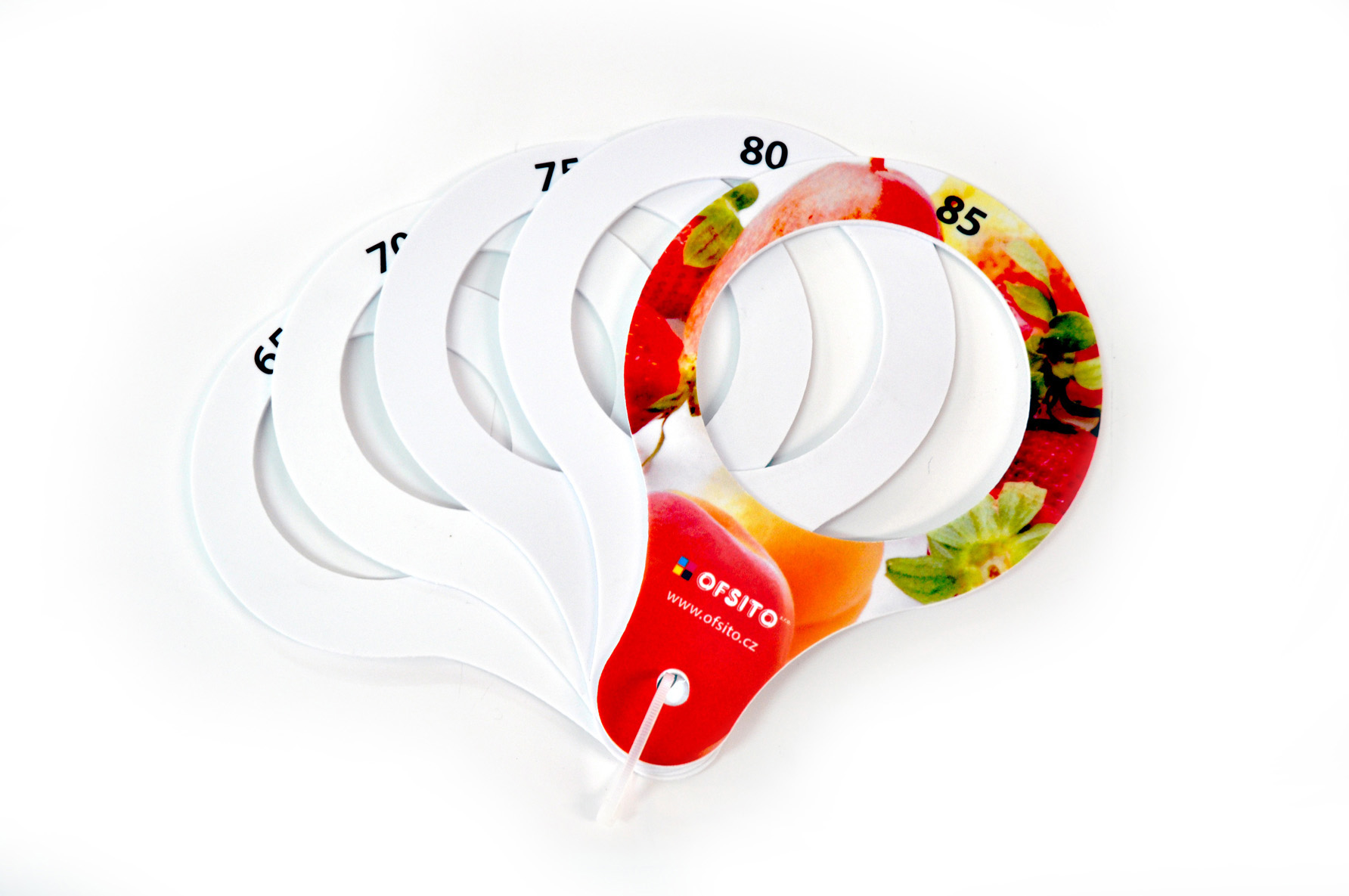

Thin plastic
8
3D effect printing on canvas (LX5S)
9
Transformed plastic
10

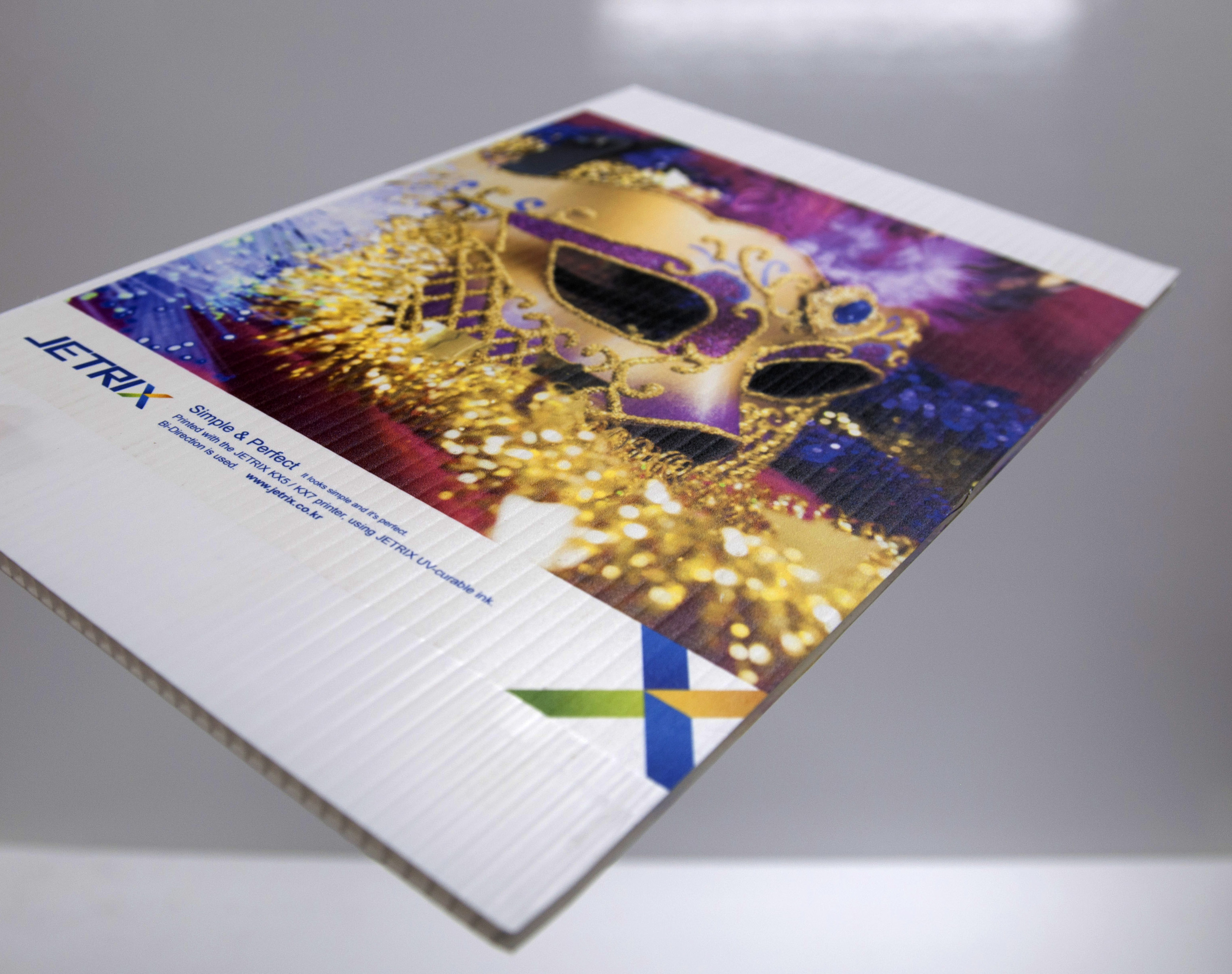

Corrugate
11
Plaster board
12
3D effect printing on canvas (LX5S)
13
Tile
14

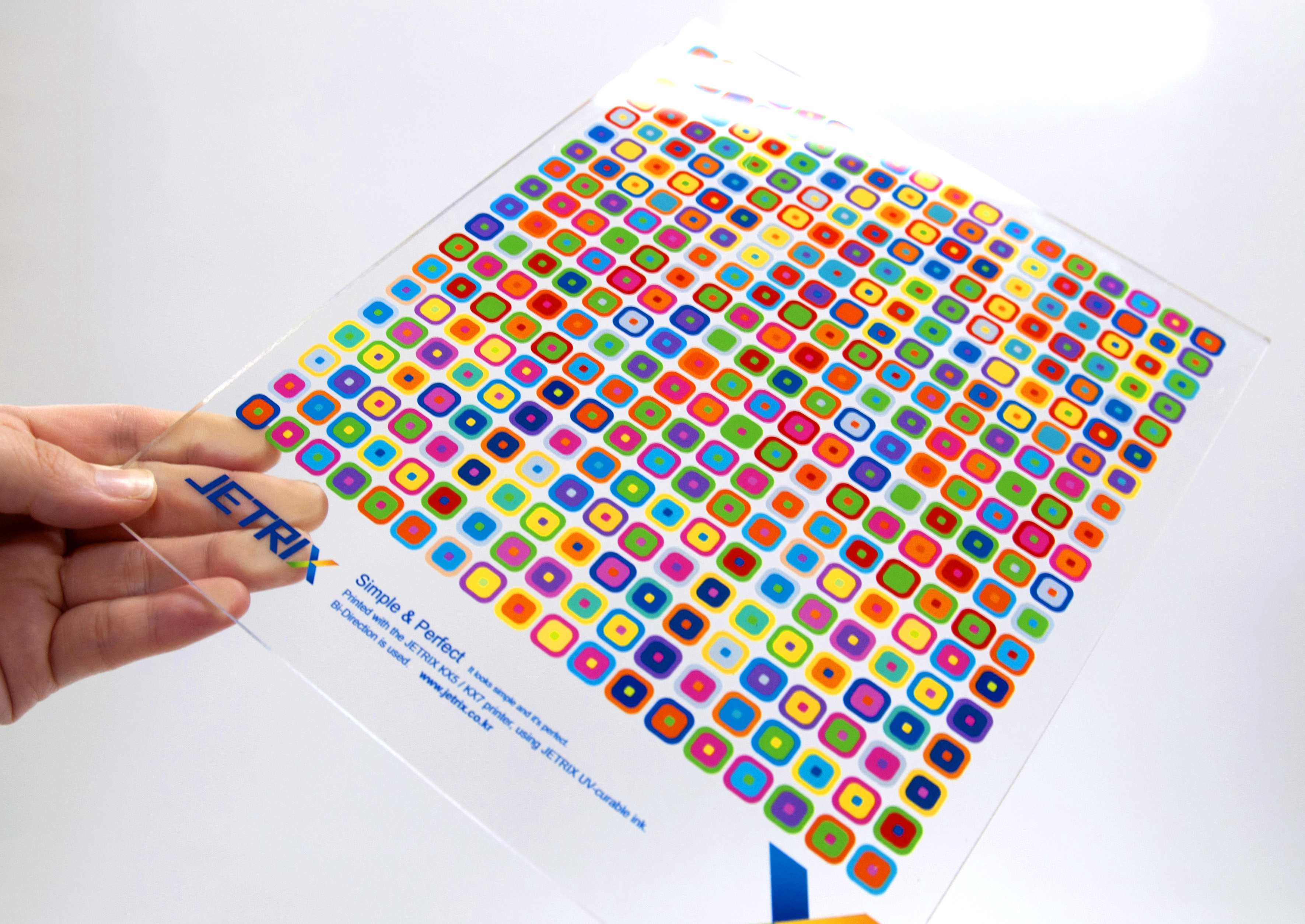

Transparent plastic
15
Glass
16

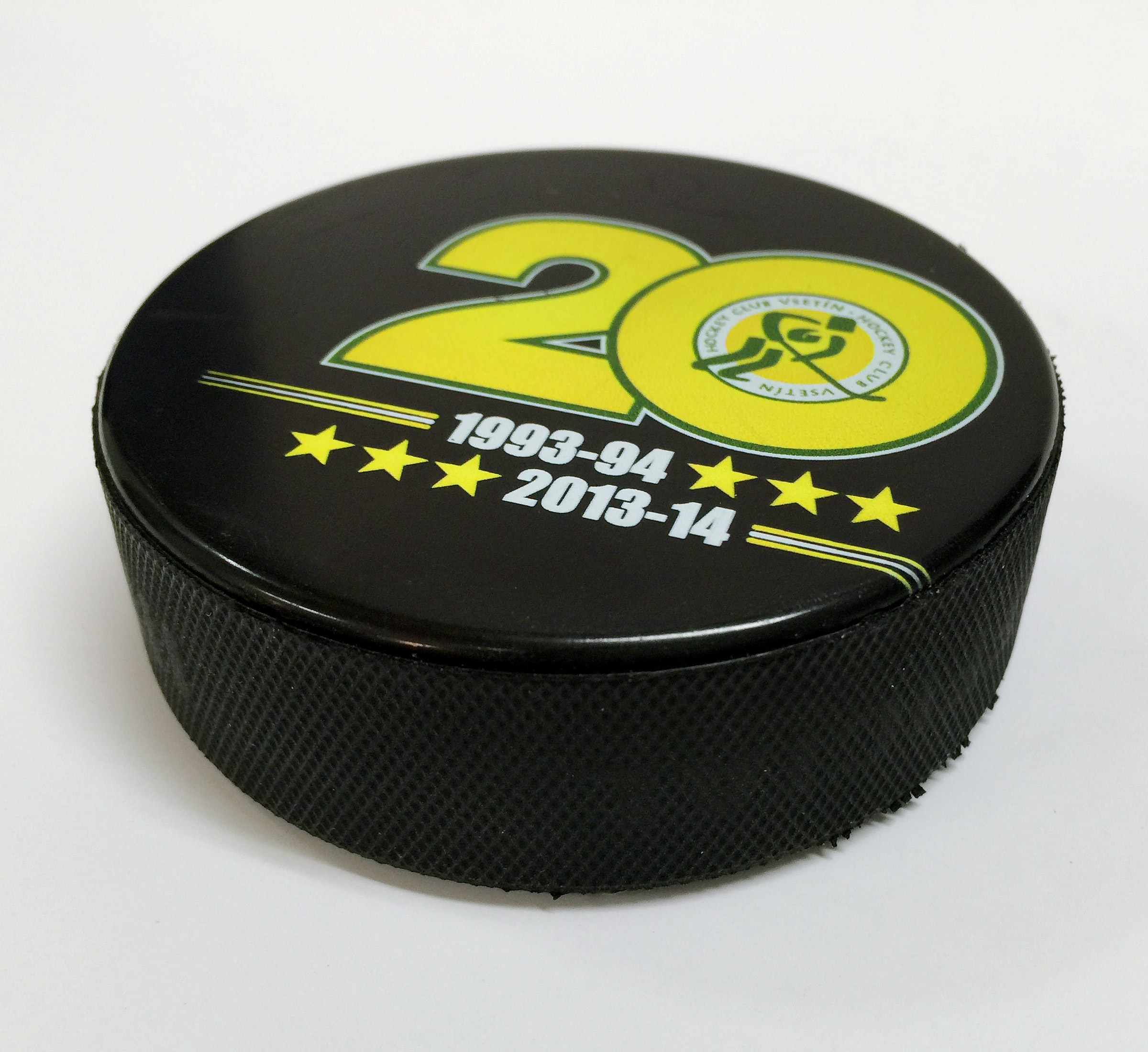

hockey puck
17
Backlight on PC board
18

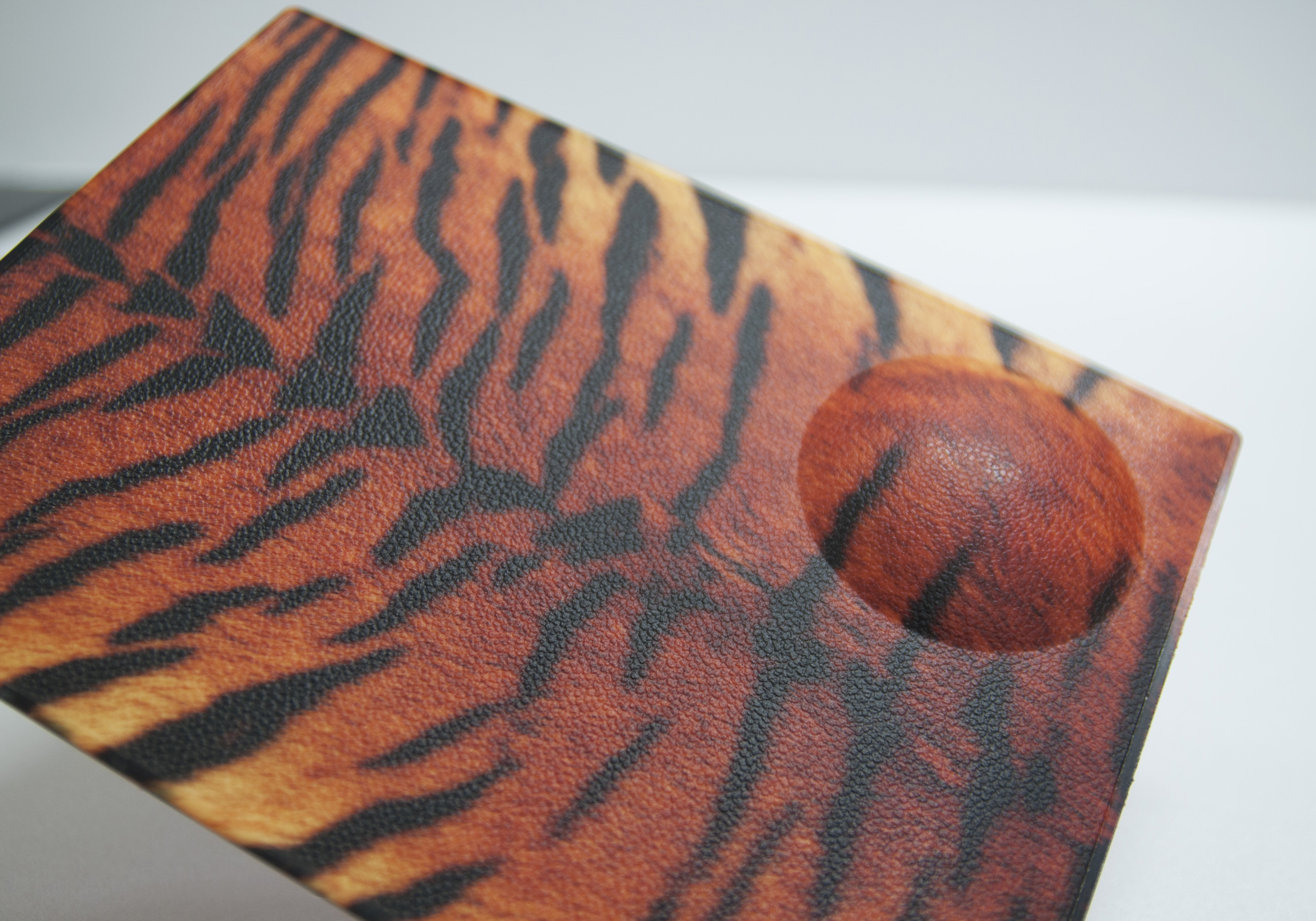

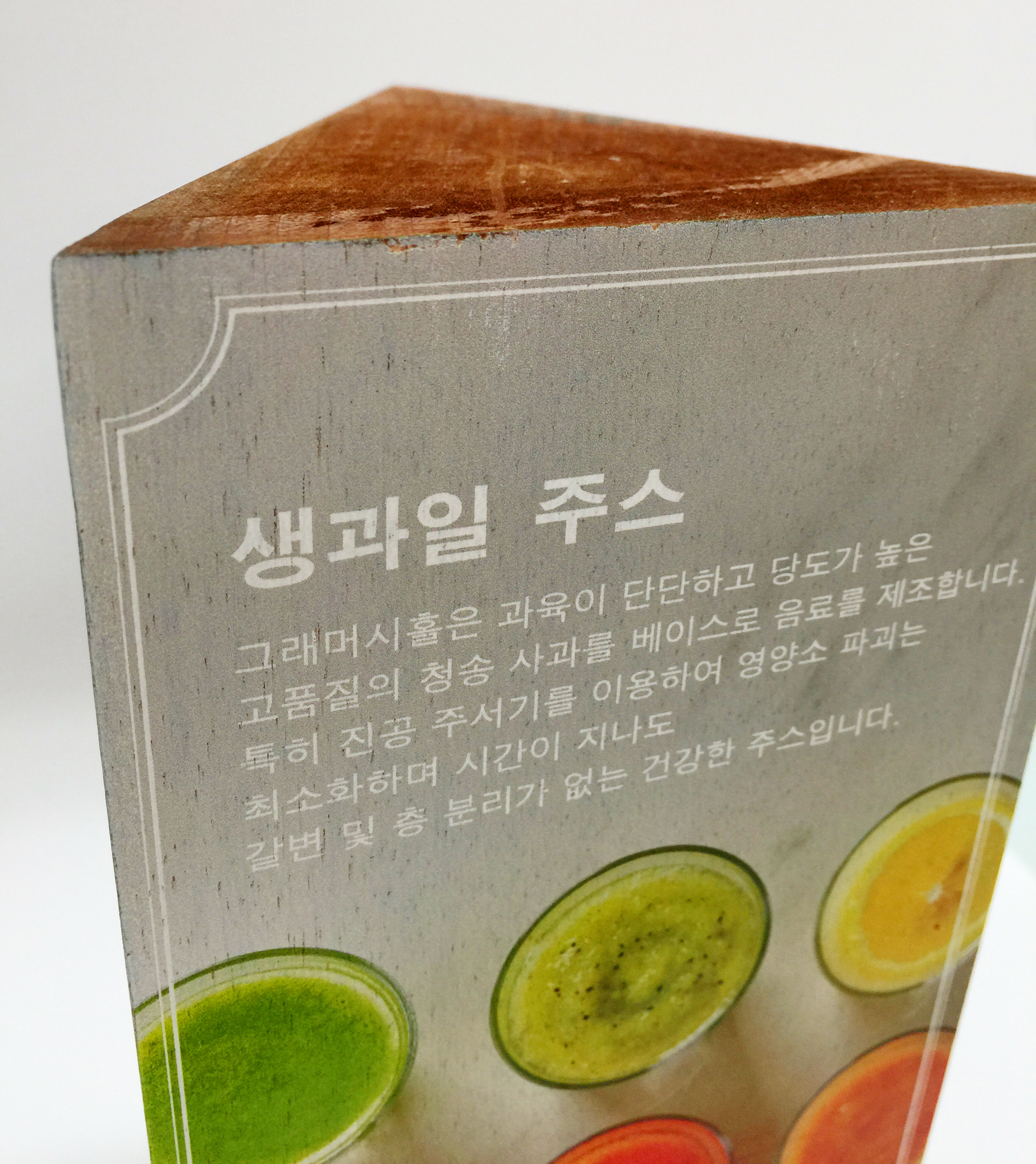

wood
19
Backlight on Felx by JETRIX RX5000

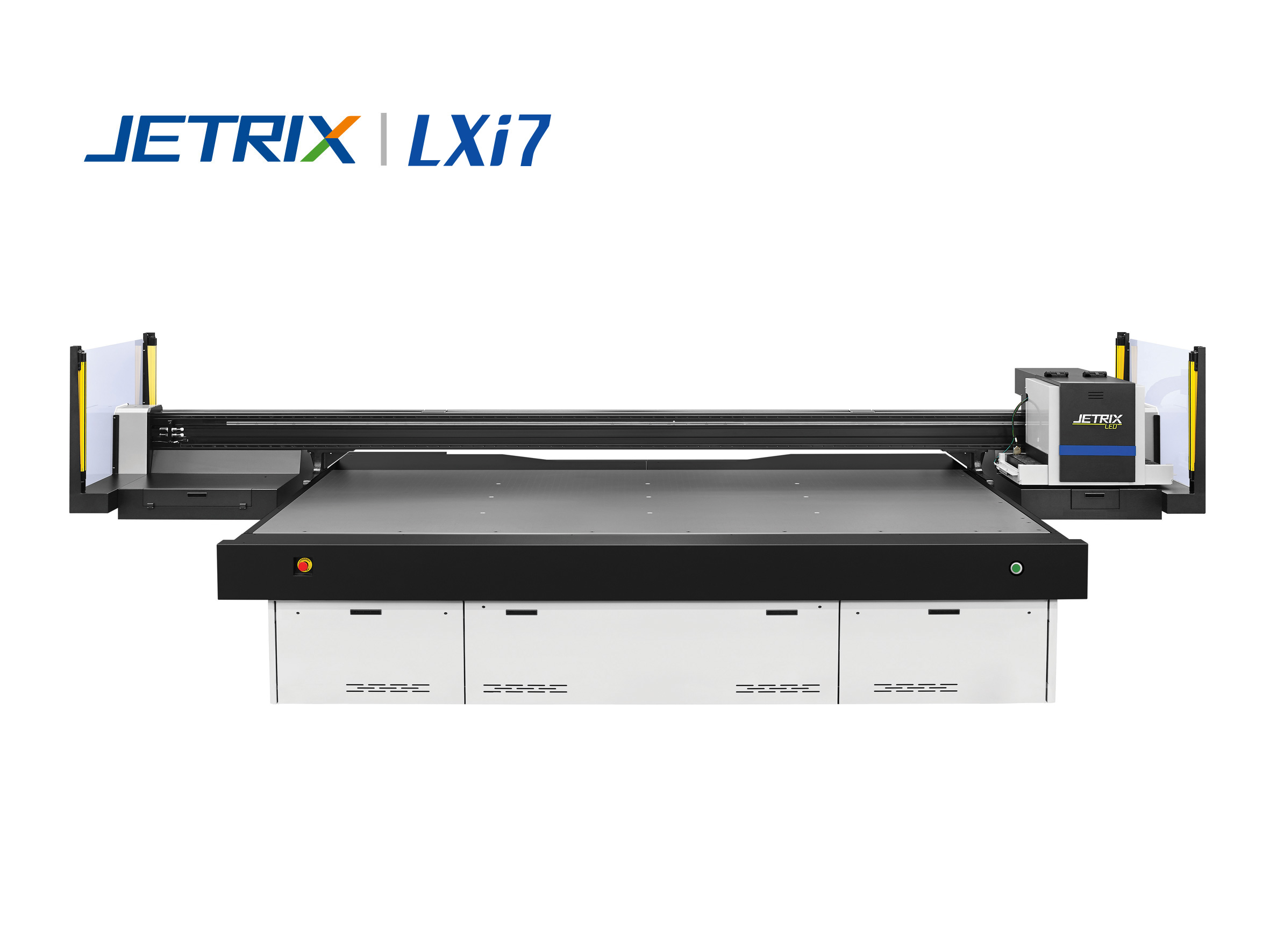

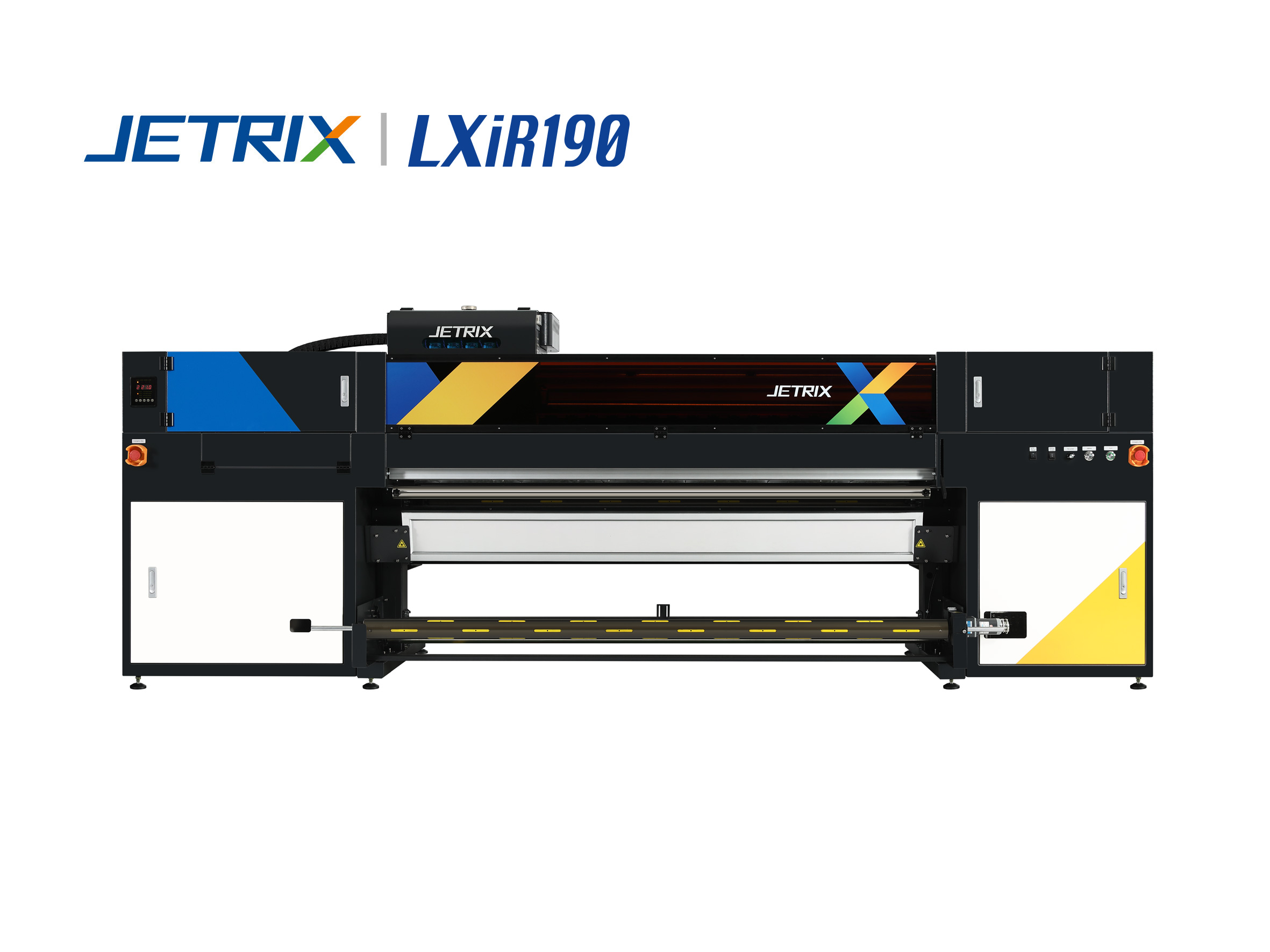

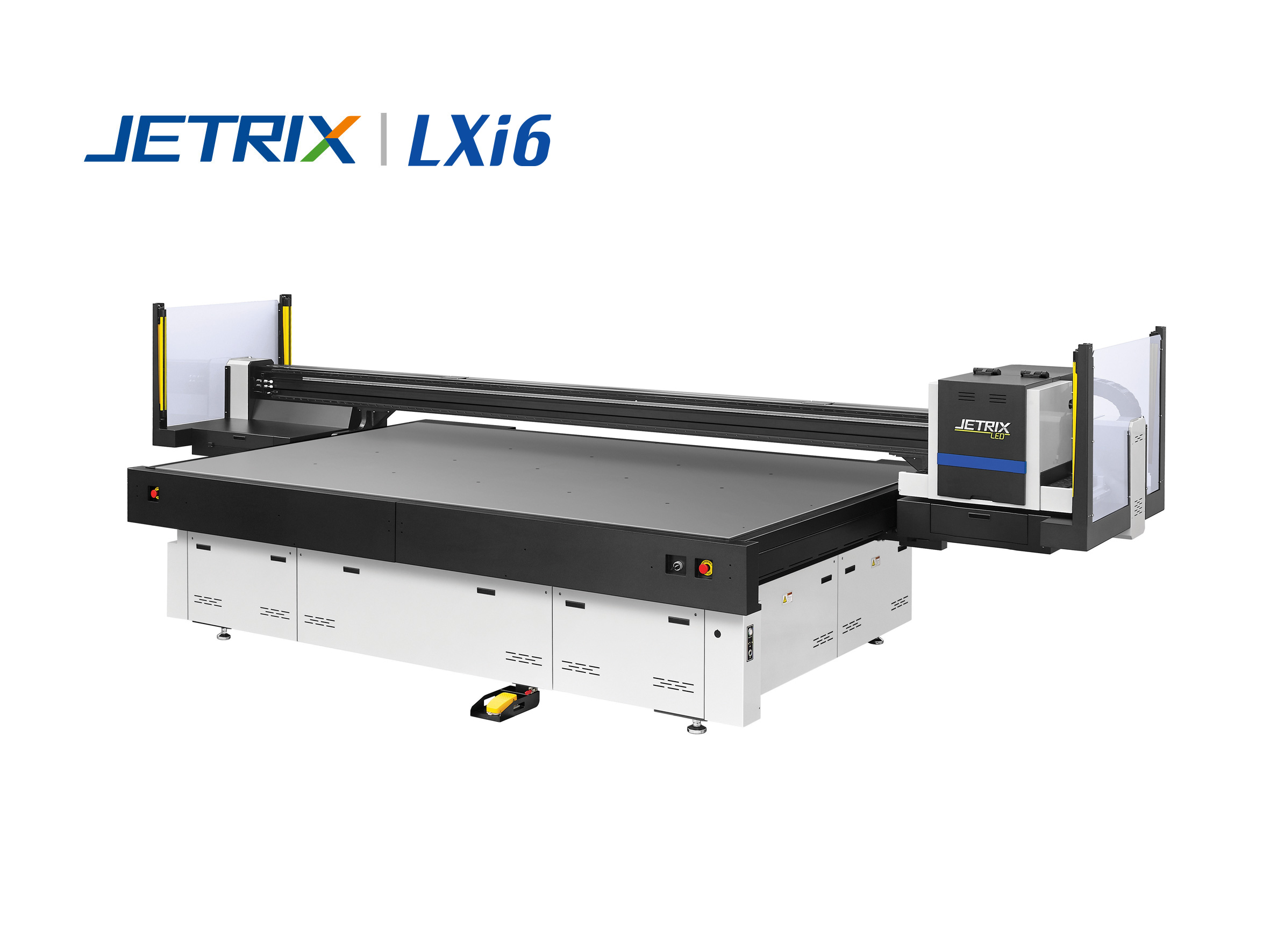

LX Series

InkTec's JETRIX LED UV flatbed printers, uses Konica Minolta print heads (6 picoliter) which deliver the perfect combination of superb printing quality and high productivity. Carefully designed for stablility and precision, the printer offers optimal printing results on a wide variety of substrates. The JETRIX LX series features the new LED curing system, which costs less to run due to its lower energy consumption and longer lifetime.

Technical specifications

LX5S
Head Configuration Konica 1024 / 6 PL
Resolution (dpi) 1440x720
Rigid media size (mm) 2440X1220
Rigid media thickness (mm) 100
Roll media width (mm) 2190
Printing Speed (sqm/hr) Fine Art : 11sqm/hr
Quality : 21sqm/hr
Production : 39sqm/hr
Draft : 60sqm/hr
White Available
Varnish, Primer Available
RIP Caldera
Dimension (W x D x H) 4220mm x 2200mm x 1400mm
Weight 1150kg/1600kg(roll)
Electrical requirement 210~230V, Single phase, 50 ~ 60Hz
Compressed air requirement over 0.5MPa

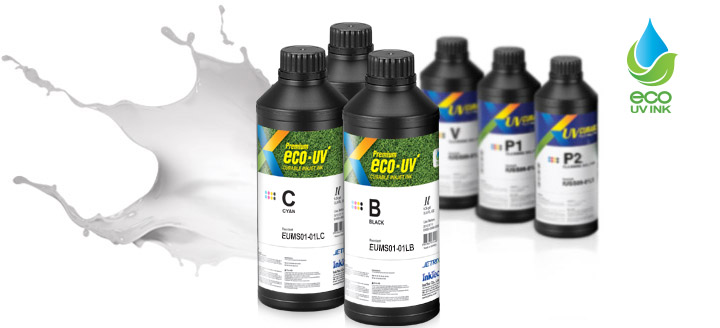

UV Curable Inkjet Inks for Digital Graphic Printing

InkTec proudly introduces a product that can create sharp and vivid colors and has excellent printing and drying functions. This was developed through InkTec’s long years of experiences and technology development.

InkTec’s UV curable inks promise to provide the users with superb quality and product efficiency.

Core benefits of UV Ink

  • Environmentally-friendly UV ink
  • Lemon scent emanates when printing, and completely disappears after a period of time
  • Longer expiration date
  • Excellent jetting stability
  • Fast curing speed leads to excellent productivity
  • Creates wider color space with vivid high-saturation colors
  • Can be applied to various indoor/outdoor materials
  • Superior light resistance and various weather resistances
  • Outstanding chemical resistance and surface wear resistance
  • Excellent adhesiveness (Special primer added)
  • Environmentally-friendly

Product Features

InkTec’s UV Curable Inks are used in UV curable inkjet printers that have adopted the Piezo DOD print head. Such ink forms optimal dots and can express vivid colors with high saturation, and can be directly printed on a vast range of materials.

High-Resolution Printing Quality

InkTec’s UV Curable Inks are convenient to use, and can be used under stable and fast-curing conditions. Also, they are able to create vivid, high-saturation colors, and have great compatibility with various flatbeds and roll materials for interior and outdoor advertisements.

※ Using an exclusive primer for UV Inkjet equipment, which was developed with InkTec’s extensive experience-based technical skills, the limitations of digital printing can be overcome.

Outdoor Durability

InkTec’s UV Curable Ink use pigments equivalent to automobile paint, and can realize optimum printing quality. Also, it maintains the optimal outdoor light resistance to maintain high quality with no discoloration even after a prolonged outdoor placement. InkTec’s UV Curable Inks are tested in diverse environments, and maintain outdoor durability (water resistance, light resistance, etc.) for more than 2-3 years.
